مواسير فايبر اسود PN 20 SDR 6

مواصفات

Material: PP-R with integrated fiber reinforced layer and external UV layer

Standard: DIN 80 77/ DIN8078, DIN EN ISO 15874

Product series: SDR6 / S2.5

Color: internal layer is green and outer layer is black. Pipe: black pipes with laser labelling system

Form Suuplied: 4 meters straight length

تنزيل الكتالوج

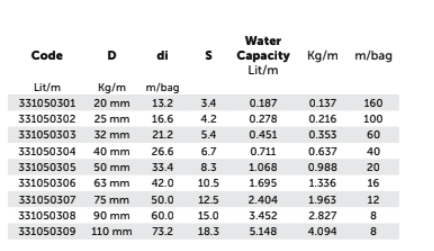

Code	D	di	s	Capacity	Kg/m	m/bag
Lit/m	Kg/m	m/bag		Lit/m
331050101	20mm	13.2	3.4	0.187	0.137	160
331050102	25mm	16.6	4.2	0.278	0.216	100
331050103	32mm	21.2	5.4	0.451	0.353	60
331050104	40mm	26.6	6.7	0.711	0.637	40
331050105	50mm	33.4	8.3	1.068	0.988	20
331050106	63mm	42.0	10.5	1.695	1.336	16
331050107	75mm	50.0	12.5	2.404	1.963	12
331050108	90mm	60.0	15.0	3.452	2.827	8
331050109	110 mm	73 .2	18.3	5.14 8	4 .094	8
