PP-RCT PN20 – SDR 7.4 مواسير

مواصفات

Material: PP-RCT

Standard: DIN 8077/DIN 8078, DIN EN ISO 15874

Product series: SDR 7.4/S 3.2

Color: GREEN WITH LASER LABELING SYSTEM

Form Suuplied: 4 METER STRAIGHT LENGTH, ALSO IN COILS FOR SOME DIAMETERS

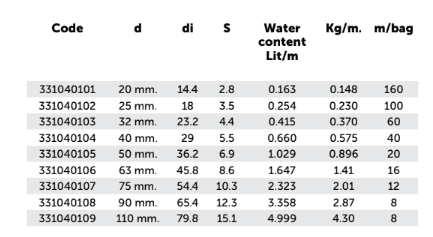

Code d di s Water content Lit/m Kg/m. m/bag
331040101 20mm. 14.4 2.8 0.163 0.148 160
331040102 25mm. 18 3.5 0.254 0.230 100
331040103 32mm. 23.2 4.4 0.415 0.370 60
331040104 40 mm. 29 5.5 0.660 0.575 40
331040105 50 mm. 36 .2 6.9 1.029 0.896 20
331040106 63mm. 45.8 8.6 1.647 1.41 16
331040107 75mm. 54.4 10.3 2.323 2.01 12
331040108 90mm. 65.4 12.3 3.358 2.87 8
331040109 110 mm. 79.8 15.1 4.999 4.30 8
