Complete Home Solutions Filter

Multilayer pipes with fiber Reinforced UV in Black PN 16 SDR 7.4

Specifications

Material: PP-R with integrated fiber reinforced layer and external polypropylene layer

Standard: DIN 8077/DIN 8078, DIN EN ISO 15874

Product series: SDR 7.4/ S 3.2

Color: internal layer is green and outer layer is black

Form Suuplied: 4 meters straight length

Download Catalog

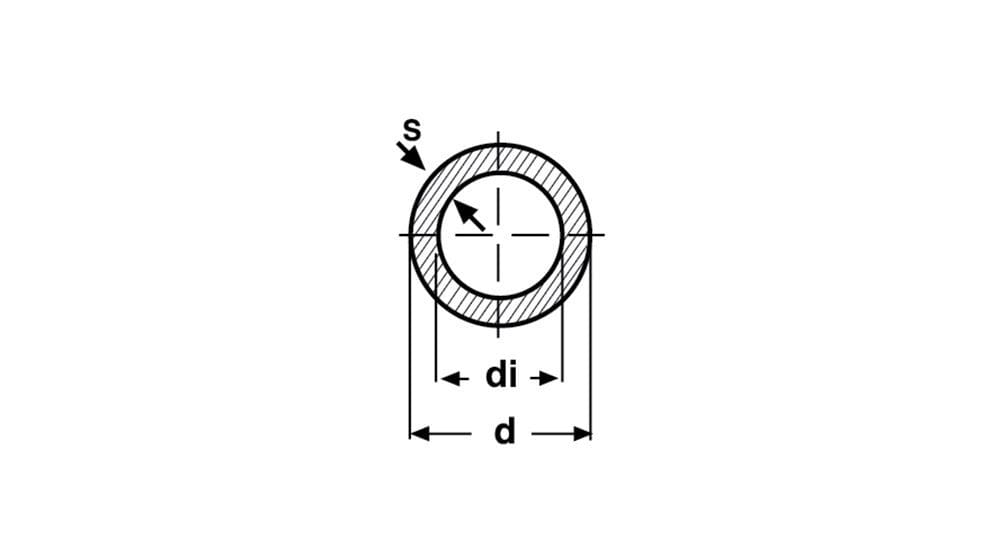

code	D	di	S	Water Capacity Lit/m	KG	m/bag
331050101	20mm	14.4	2.8	0.163	0.160	160
331050102	25mm	18	3.5	0.254	0.242	100
331050103	32mm	23.2	4.4	0.415	0.392	60
331050104	40mm	29	5.5	0.660	0.597	40
331050105	50mm	36.2	6.9	1.029	0.949	20
331050106	63mm	45.8	8.6	1.647	1.434	16
331050107	75mm	54.4	10.3	2.323	2.127	12
331050108	90mm	65.4	12.3	3.358	2.956	8
331050109	110mm	79.8	15.1	4.999	4.32	8
