Code: 371040016
ย

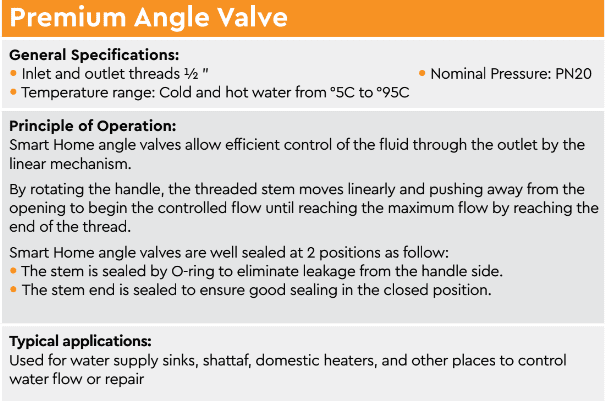

General Specifications:
๏ Inlet and outlet threads 1โ2 โ
๏ Nominal Pressure: PN20
๏ Temperature range: Cold and hot water from ยฐ5C to ยฐ95C
ย
Principle of Operation:
Smart Home angle valves allow efficient control of the fluid through the outlet by the
Linear mechanism.
By rotating the handle, the threaded stem moves linearly and pushing away from the
Opening to begin the controlled flow until reaching the maximum flow by reaching the
End of the thread.
Smart Home angle valves are well sealed at 2 positions as follow:
๏ the stem is sealed by O-ring to eliminate leakage from the handle side.
๏ the stem end is sealed to ensure good sealing in the closed position.
ย
Typical applications:
Used for water supply sinks, shattaf, domestic heaters, and other places to control
Water flow or repair
