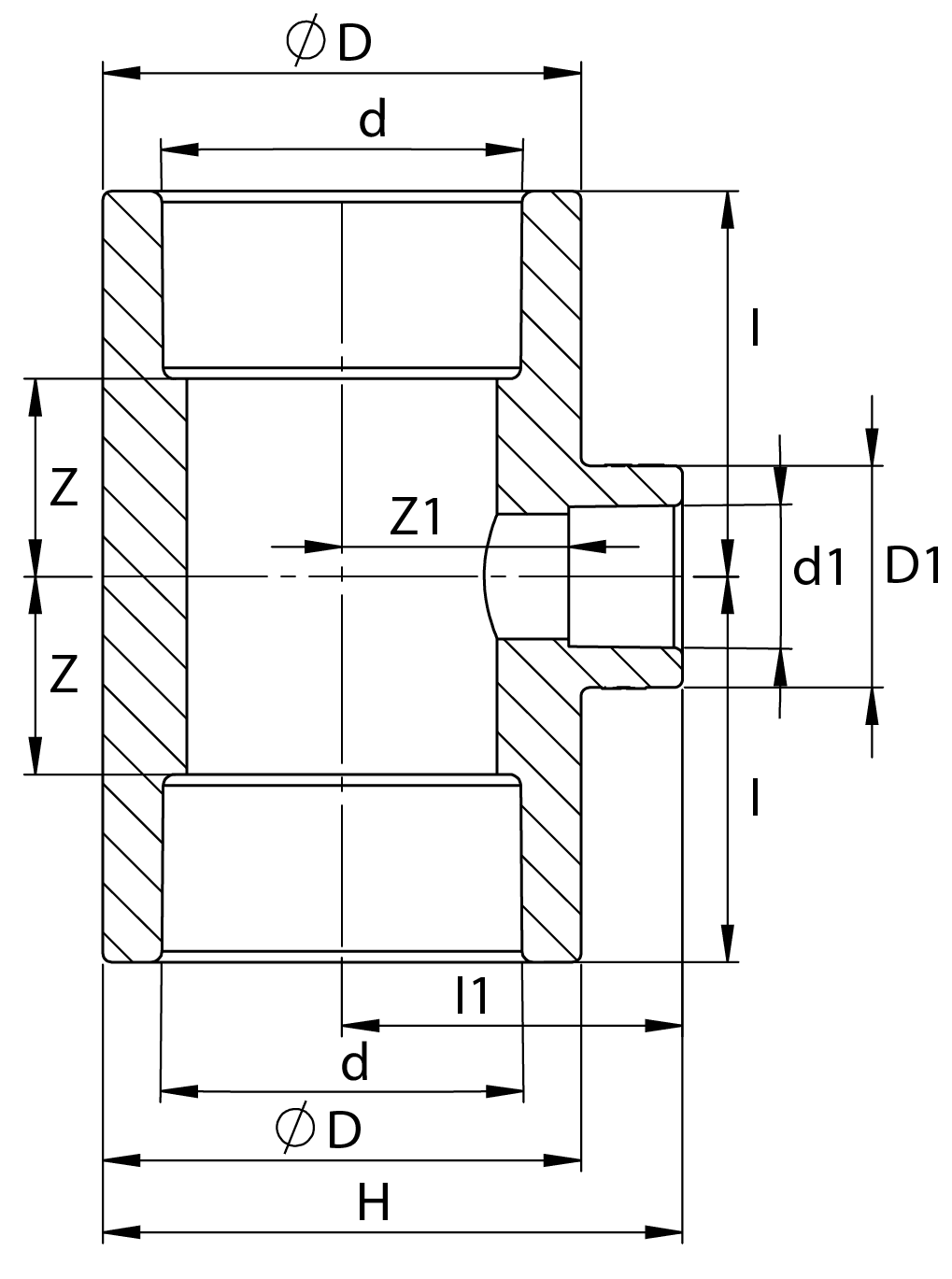

Reducing Tee 90°

Specifications

Download Catalog

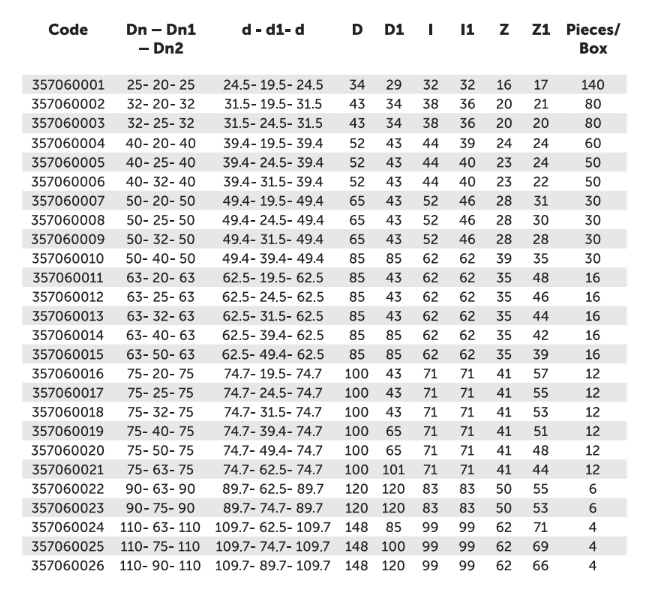

Code	Dn- Dn1 – Dn2	d – d1- d	D	D1 I	I1	z	Z1	Pieces/ Box
357060001	25- 20- 25	24.5- 19.5- 24.5	34	29 32	32	16	17	140
357060002	32- 20- 32	31.5- 19.5- 31.5	43	34 38	36	20	21	80
357060003	32- 25- 32	31.5- 24.5- 31.5	43	34 38	36	20	20	80
357060004	40- 20- 40	39.4- 19.5- 39.4	52	43 44	39	24	24	60
357060005	40- 25- 40	39.4- 24.5- 39.4	52	43 44	40	23	24	50
357060006	40- 32- 40	39.4- 31.5- 39.4	52	43 44	40	23	22	50
357060007	50- 20- 50	49.4- 19.5- 49.4	65	43 52	46	28	31	30
357060008	50- 25- 50	49.4- 24.5- 49.4	65	43 52	46	28	30	30
357060009	50- 32- 50	49.4- 31.5- 49.4	65	43 52	46	28	28	30
357060010	50- 40- 50	49.4- 39.4- 49.4	85	85 62	62	39	35	30
357060011	63- 20- 63	62.5- 19.5- 62.5	85	43 62	62	35	48	16
357060012	63- 25- 63	62.5- 24.5- 62.5	85	43 62	62	35	46	16
357060013	63- 32- 63	62.5- 31.5- 62.5	85	43 62	62	35	44	16
357060014	63- 40- 63	62.5- 39.4- 62.5	85	85 62	62	35	42	16
357060015	63- 50- 63	62.5- 49.4- 62.5	85	85 62	62	35	39	16
357060016	75- 20- 75	74.7- 19.5- 74.7	100	43 71	71	41	57	12
357060017	75- 25- 75	74.7- 24.5- 74.7	100	43 71	71	41	55	12
357060018	75- 32- 75	74.7- 31.5- 74.7	100	43 71	71	41	53	12
357060019	75- 40- 75	74.7- 39.4- 74.7	100	65 71	71	41	51	12
357060020	75- 50- 75	74.7- 49.4- 74.7	100	65 71	71	41	48	12
357060021	75- 63- 75	74.7- 62.5- 74.7	100	101 71	71	41	44	12
357060022	90- 63- 90	89.7- 62.5- 89.7	120	120 83	83	50	55	6
357060023	90- 75- 90	89.7- 74.7- 89.7	120	120 83	83	50	53	6
357060024	110- 63-110	109.7- 62.5- 109.7	148	85 99	99	62	71	4
357060025	110- 75-110	109.7- 74.7- 109 .7	148	100 99	99	62	69	4
357060026	110- 90-110	109.7- 89.7- 109.7	148	120 99	99	62	66	4
