Complete Home Solutions Filter

Brand: Kessel

  • Above the Ground
    • Pipes with Sockets
    • Fittings
  • Under the Ground
    • Pipes
    • Fittings
Download Catalog
About Kessel Polypropylene
About Kessel Underground
Kessel

Kitchen drain

Kessel

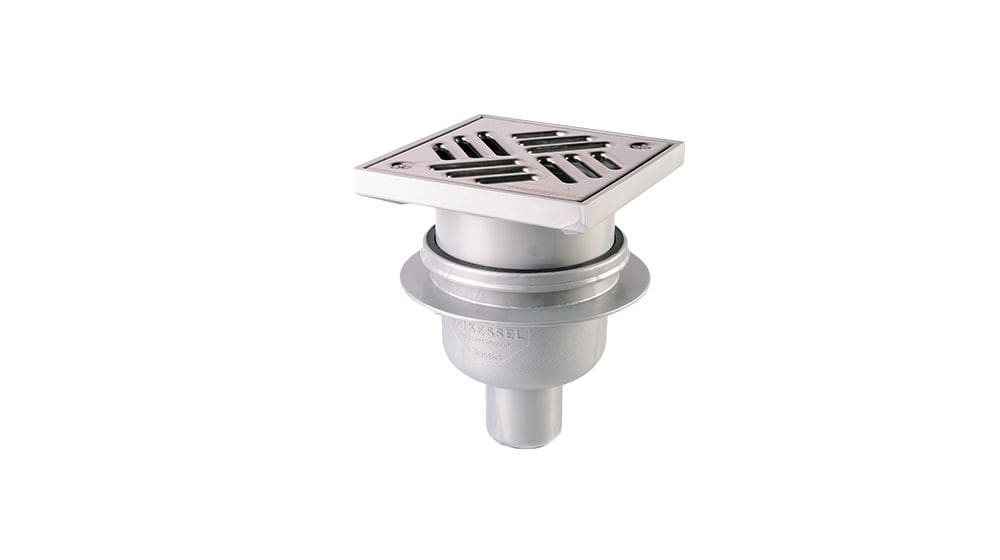

Point Drain with vertical outlet

Kessel

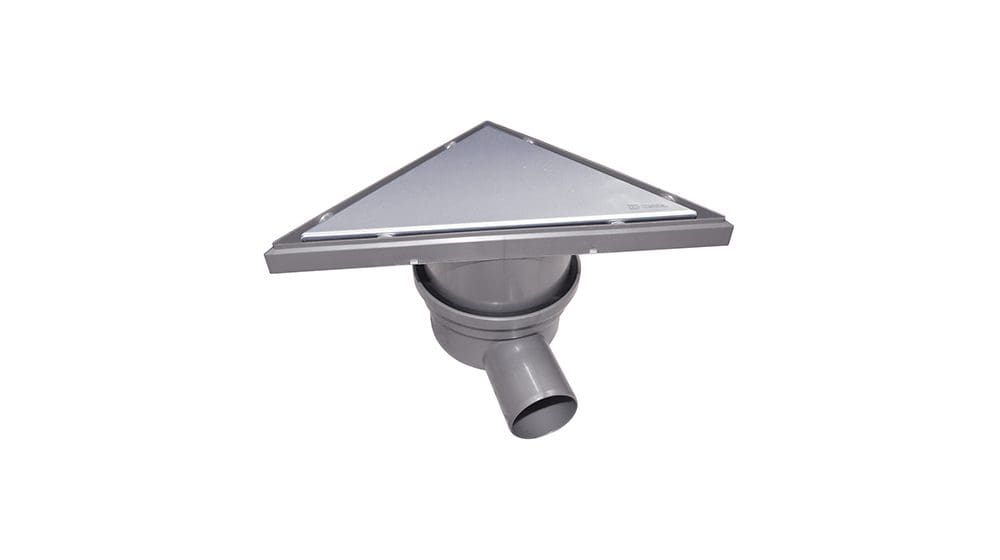

corner shower drain

Kessel

Point Drain 100 x 100 mm with Tileable Cover

Kessel

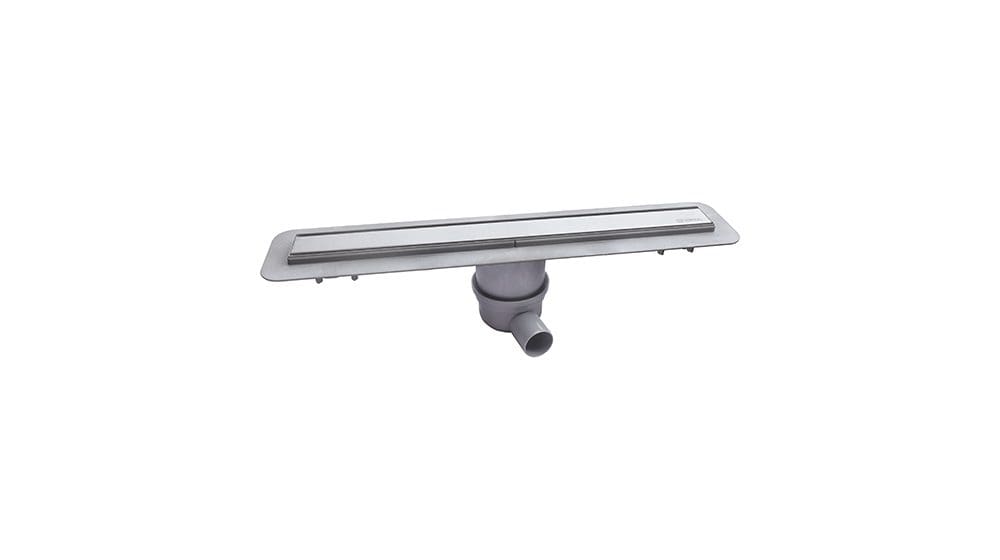

Shower Channel 650 mm

Kessel

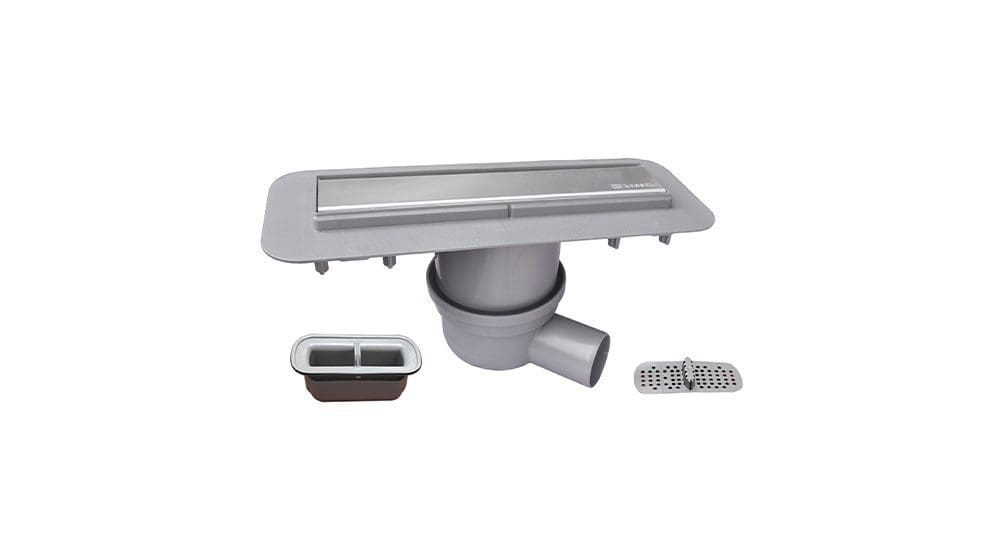

Shower Channel 300 mm

Kessel

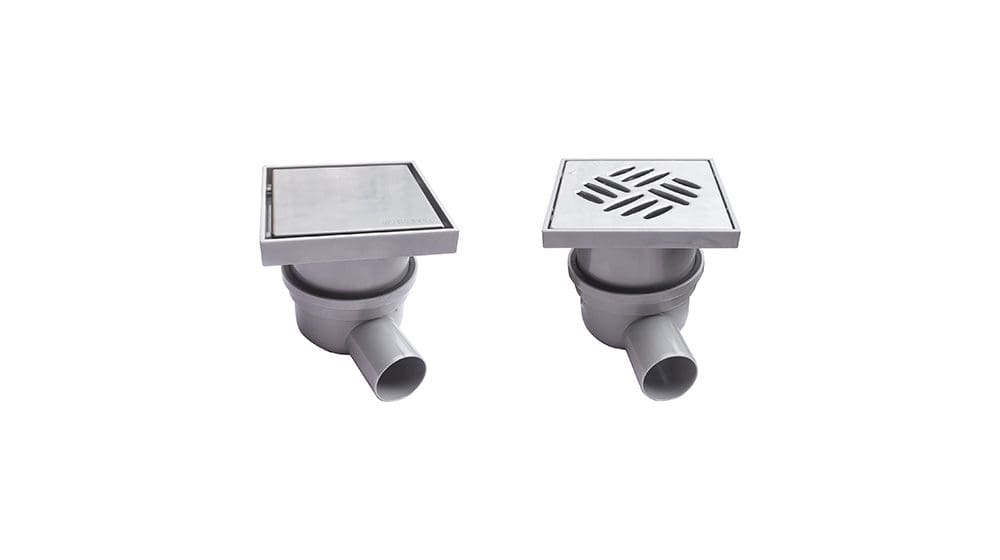

Point Drain 150 x 150 mm

Kessel

Point Drain 150 x 150 mm tileable cover

Load More
No more products to show

NEWSLETTER

Subscribe to our newsletter and get free access to our news and updates

[forminator_form id=”35176″]

sitemap

  • About EGIC
  • Newsroom
  • Export
  • Social Wall
  • CSR
  • About EGIC
  • Newsroom
  • Export
  • Social Wall
  • CSR

products

  • Water Supply Solutions
  • Drainage Solutions
  • Water Supply Accessories
  • Copper Brass Bars &Inserts
  • Water Supply Solutions
  • Drainage Solutions
  • Water Supply Accessories
  • Copper Brass Bars &Inserts

services

  • Complete Home Solutions
  • Customer Training
  • Complete Home Solutions
  • Customer Training

newsroom

  • Blogs
  • Exhibitions
  • News
  • Trips & Ceremonies
  • Blogs
  • Exhibitions
  • News
  • Trips & Ceremonies

find us

Address: 53 EL Manial st.
Cairo, Egypt
Hotline: 19678
Email: info@egic.com.eg
Export: export@egic.com.eg

Facebook Instagram Twitter Youtube Linkedin

© Copyright EGIC – All Rights Reserved  |  Developed by EGIC

Kessel Polypropylene Drainage Solutions

A. Introduction

EGIC produces push-to-fit drainage system made of polypropylene. This range of pipes, fittings and floor drains ensures ease of assembly and installation due to special seal plugs that tightly grip the pipes when they are inserted into the fitting sockets. The Pipes are made of polypropylene (PP) hot water resistant and they have also stabilized light sensitivity. Our range has sizes starting from 50mm – 160mm with an average Pipes Length 3 meters straight length and they stand out with the Color Grey RAL 7037.

B. The Advantages of Kessel Push-Fit Drainage System are:

  • The speed of making a connection with push-fit fittings where user can quickly cap or repair
  • Push-fit fittings are available in various sizes for different kinds of applications
  • Push-fit fittings are easily removed so they can be repositioned as needed without specialized tools
  • Plastic pipe with light weight, high flexibility, anti-leakage and chemical resistant

C. Installation Tips

  • Pipes, fittings and floor drains are connected by push-fit sockets and sealed tight with sealing ring.
  • Pipes can be easily cut to fit any length, chamfered and burned, connected and fixed in position.
  • In horizontal lines, the spacing of pipe clamps must not be more than ten times the outer diameter of the pipe. In vertical lines, spacing should not more than 1 meter (maximum 2 meters)
  • If the floor is covered with asphalt mastic, exposed pipe should be protected with heat-insulating material.
  • When Kessel pipes are laid in concrete, the socket gaps should be sealed with adhesive tape in order to prevent penetration of cement grout.

Push-fit Underground Drainage Solution:

EGIC produces the underground push-fit drainage system made of polypropylene to prevent the excess load of structures placed above the underground system. EGIC re-invented the sizes of the pipes and fittings to range from 160-200 mm. Our underground fittings include four internal ribs on both sides to tolerate heavy loads up to 4 KN/m2 and prevent dust from penetrating the drainage system.

The advantages of push-fit Underground Drainage Solution:

  • Higher flexibility to tolerate ground movements and heavy loads up to 4 KN/m2 without damage
  • Effectively perform under high temperature that may reach 95°C
  • Prevent dust from penetrating the drainage system
  • Fully anti-leakage system and chemical resistant
  • Easier to fit, install and repair than alternative materials that need solvent-gluing
