PP-R Rohr PN16 SDR 7.4

Specifications

Material: PP-R

Standard: DIN 8077/ DIN 8078, DIN EN ISO 15874

Product series: SDR 7.4/S 3.2

Color: Green with laser labeling system.

Form Suuplied: 4 meter straight length, also in coils for some diameters

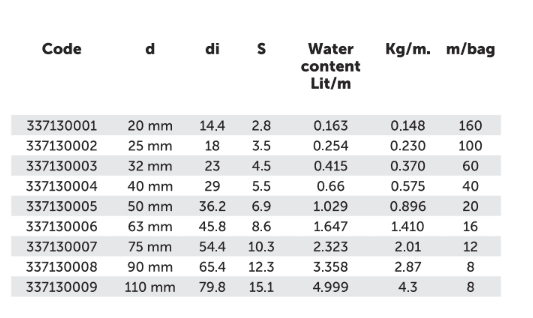

Code D di S Water content lit/m Kg/m. m/bag
337130001 20 mm. 14.4 2.8 0.163 0.147 160
337130002 25 mm. 18 3.5 0.254 0.229 100
337130003 32 mm. 23 4.5 0.415 0.377 60
337130004 40 mm. 29 5.5 0.66 0.578 40
337130005 50 mm. 36.2 6.9 1.029 0.907 20
337130006 63 mm. 45.8 8.6 1.647 1.426 20
337130007 75 mm. 54.4 10.3 2.323 2.032 12
337130008 90 mm. 65.4 12.3 3.358 2.914 8
337130009 110 mm. 79.8 15.1 4.999 4.369 8
