PP-R Rohr PN16 SDR 7.4

Specifications

Material: PP-RCT

Standard: DIN 8077/ DIN 8078, DIN EN ISO 15874

Product series: SDR 7.4/S 3.2

Color: Green with laser labeling system.

Form Suuplied: 4 METER STRAIGHT LENGTH, ALSO IN COILS FOR SOME DIAMETERS

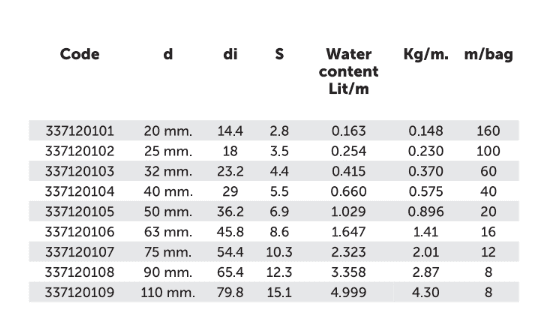

Code d di s Water content Lit/m Kg/m. m/bag
337120101 20mm. 14.4 2.8 0.163 0.148 160
337120102 25mm. 18 3.5 0.254 0.230 100
337120103 32mm. 23.2 4.4 0.415 0.370 60
337120104 40 mm. 29 5.5 0.660 0.575 40
337120105 50 mm. 36 .2 6.9 1.029 0.896 20
337120106 63mm. 45.8 8.6 1.647 1.41 16
337120107 75mm. 54.4 10.3 2.323 2.01 12
337120108 90mm. 65.4 12.3 3.358 2.87 8
337120109 110 mm. 79.8 15.1 4.999 4.30 8
