PP-R Pipe PN20 – SDR 6

Specifications

Material: PP-R

Standard: DIN 8077/ DIN 8078, DIN EN ISO 15874

Product series: SDR 6/S 2.5

Color: Green with laser labeling system.

Form Suuplied: 4 meter straight length, also in coils for some diameters

Download Catalog

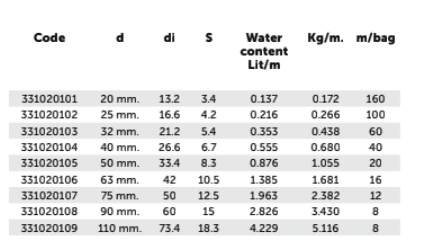

Code	d	di	s	Water content Lit/m	Kg/m.	m/bag
331020101	20mm.	13.2	3.4	0.137	0.172	160
331020102	25mm.	16.6	4.2	0.216	0.266	100
331020103	32mm.	21.2	5.4	0.353	0.438	60
331020104	40mm.	26.6	6.7	0.555	0.680	40
331020105	50 mm.	33.4	8.3	0.876	1.055	20
331020106	63 mm .	42	10.5	1.385	1.681	16
331020107	75mm.	50	12.5	1.963	2.382	12
331020108	90 mm .	60	15	2.826	3.430	8
331020109	110 mm.	73.4	18.3	4.229	5.116	8
