PPR pipe PN10 SDR 11

Specifications

Material: PP-R

Standard: DIN 8077/ DIN 8078, DIN EN ISO 15874

Product series: SDR 11/S 5

Color: Green with laser labeling system.

Form Suuplied: 4 meter straight length, also in coils for some diameters

Download Catalog

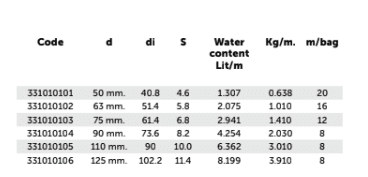

Code	d	di	s	Water content Lit/m	Kg/m.	m/bag
331010101	50 mm.	40.8	4.6	1.307	0.638	20
331010102	63 mm.	51.4	5.8	2.075	1.010	16
331010103	75mm.	61.4	6.8	2.941	1.410	12
331010104	90 mm .	73.6	8.2	4.254	2.030	8
331010105	110 mm.	90	10 .0	6.362	3.010	8
331010106	125 mm.	102.2	11.4	8.199	3.910	8
